Caravan wiring diagrams: Understanding your electrical system

Understanding caravan wiring diagrams and your vehicle’s electrical system will help ensure your adventures are safe and may give you the knowledge you need to fix any minor connection issues.

In this guide, we’ll discuss what a caravan wiring system is and detail some of the main types of wiring systems. We’ll also look at how to read wiring diagrams and offer some top tips to keep you safe when fixing or adjusting your system.

What is a caravan wiring diagram?

A caravan wiring diagram is an image that shows how the electrical systems in a caravan are connected and configured, plus how energy flows through the system. It can include a range of components, including batteries, lights, appliances, chargers, fuses, switches, and solar panels. You can learn how to fit a solar panel to your caravan here.

Types of caravan wiring systems

There are several types of caravan wiring systems, and each one has its own unique features.

12V caravan wiring system (DC)

A 12V caravan wiring system (DC) is powered by a battery which can be charged through being plugged into a mains charger, via a DC-DC charger from its towing vehicle or using solar panels. The main features of this system are a 12V fuse box, switch panels, and a battery monitor. It’s ideal for anyone camping off-grid with low power needs and is typically used to power a caravan’s lights, water pump, and USB chargers.

240V caravan wiring system (AC)

Powered by an external mains hook-up or inverter, which enables you to run 240V devices from a 12V battery, a 240V caravan wiring system (AC) is best for people staying on caravan sites with electric hook-ups who want to be able to power their home comforts, such as a microwave or toaster. The main features of this type of caravan wiring system include circuit breakers, an inlet socket, and 240V outlets.

Solar charging systems

Solar charging systems typically feature solar panels and a solar regulator, which work to charge the caravan’s battery using energy from the sun. Roof-mounted solar panels are always charging, whereas portable panels need to be manually positioned. Solar charging systems are perfect for off-grid caravanners and those staying away for long periods of time without access to mains power.

Battery systems in caravans

There are many battery types that can be used for battery systems in caravans, including AGM, gel, and lithium. AGM batteries are affordable and reliable but slow to charge, making them best for occasional caravanners or those looking to explore on a budget. Lithium batteries are more expensive, but they charge quickly, are lightweight, and boast a long lifespan.

Key components in a caravan wiring diagram

• Battery – Stores energy to power 12V appliances when staying off-grid in your caravan
• Inverter – Converts 12V DC from the battery to 240V AC for household appliances, such as kettles and microwaves
• DC to DC charger – Charges the caravan’s battery from the tow vehicle while on the move

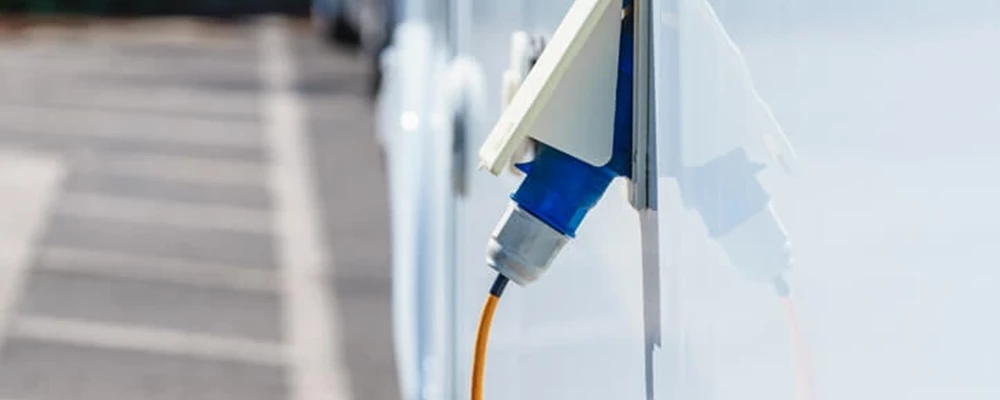

• 240V AC inlet – Connects to mains power at campsites
• Fuses and circuit breakers – Protect wiring and devices from overloading or short-circuiting
• Switches and control panels – Enable you to control different circuits and devices, including the lights and fridge

How to read a caravan wiring diagram

When reading a caravan wiring diagram, the first step is to identify whether the image shows a 12V DC system, which powers your caravan’s lights, water pump, fridge, etc., or a 240V AC system, which powers household-style appliances, like kettles and toasters. Some diagrams show both systems while others only show one.

Next, you should familiarise yourself with the symbols that can appear in a wiring diagram. Often, batteries, breakers, inverters, and other features are shown using a symbol rather than wording, so it’s important to understand what each one represents. When you’ve worked out what the symbols mean, you can start to see how they’re connected to each other.

Common wiring configurations

Some common wiring configurations found in caravans include:

Mains hook-up (240V AC system)

This is the wiring configuration used when a caravan is plugged into a mains electric hook-up at a campsite or caravan park.

Off-grid (12V and solar system)

Powered by a 12V battery and solar panels, this configuration works without being plugged into the mains, making it the ideal solution for adventures off the beaten track.

Dual power (Hybrid)

A dual power system allows for both off-grid and mains hook-up connections, giving caravan owners the best of both worlds. This is a great option if you enjoy the flexibility of caravanning and like to combine camping off-grid with campsite stays.

Safety tips for DIY caravan wiring

If you’re considering carrying out work on the wiring in your caravan, consider the following safety tips before you get started:

• Implement proper grounding – All metal parts and circuits must be earthed correctly to prevent electric shocks. For 240V AC systems, grounding is a legal safety requirement and compulsory when working on your caravan’s wiring.
• Check fuse ratings – Always use fuses rated for the correct current load on each circuit. An oversized fuse can cause fires, while an undersized fuse will blow unnecessarily.
• Use high-quality cables – Cheap cables can overheat and cause dangerous issues, and you should always refer to cable size charts to ensure you’re using the right option.
• Follow electrical standards and regulations – Caravan electrical systems must comply with local laws and standards, such as BS EN 1648-1 in the UK. Non-compliant wiring can void your caravan insurance and potentially cause serious hazards.
• Call a professional – If you’re new to electrical wiring, especially 240V AC or inverter installations, it’s best to seek the help of a professional rather than attempt to make fixes or changes yourself. Incorrect wiring can cause fires, electric shocks, damage to your caravan, and a whole range of other issues, so always ask a professional to check your DIY attempts if you choose to take these on yourself.
